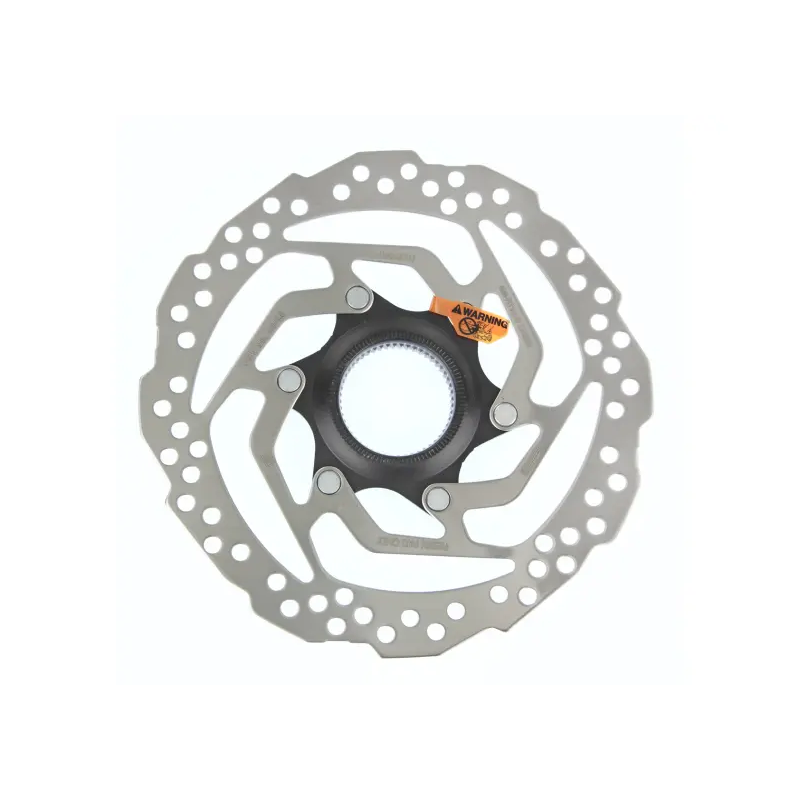

Shimano SM-RT10 CENTER LOCK (internal & external spline) Disc Brake Rotors

Shimano SM-RT10 CENTER LOCK Disc Brake Rotors

Keep your daily ride stopping smoothly and reliably with the genuine Shimano SM-RT10 CENTER LOCK disc brake rotor. Engineered for everyday versatility and long-term durability, the SM-RT10 offers smooth, quiet braking performance alongside Shimano's fast and rigid CENTER LOCK mounting system.

This updated version features a versatile internal/external spline lockring structure. The dual-spline design allows you to install or remove the lockring using either a standard cassette tool (internal spline) or a bottom bracket tool (external spline), providing maximum tool flexibility whether you're working at home or in the shop.

Available in popular 160mm and 180mm sizes, the SM-RT10 is specifically optimised for use with resin (organic) brake pads, making it an ideal, cost-effective replacement for city, trekking, and entry-level mountain bikes.

Key Features

• CENTER LOCK Mounting System: Spine-mount setup enhances rigidity and alignment precision while enabling fast, straightforward installation.

• Dual-Spline Lockring Design: Features both internal and external splines, allowing installation with standard cassette lockring tools or bottom bracket tools.

• Resin-Pad Optimised: Precision-stamped stainless steel braking surface tuned specifically for smooth, quiet braking with resin (organic) pads.

• Reliable Stopping Power: Provides consistent lever feel and dependable braking performance for everyday riding.

• Popular Size Options: Available in 160mm and 180mm diameters to suit standard front and rear brake setups.

Recommended Disciplines

• City & Urban Bikes: Perfect for daily commuting and city navigation.

• Trekking & Cross-Country MTB: Great replacement rotor for leisure trails and recreational riding.

• E-Bikes & Leisure: Durable, quiet stopping power for leisure and entry-level electric bikes.

Specifications

• Model Name: SM-RT10Series: Shimano Tourney TX800 / Non-Series

• Mounting System: CENTER LOCK

• Lockring Type: Dual Spline (Internal & External Spline tool compatibility)

• Pad Compatibility: Resin (Organic) Pads Only

• Material: Stainless Steel (Rotor Body) / Steel (Lockring)

• Rotor Sizes Available: 160mm, 180mm

• Package Contents: 1 Disc Brake Rotor, 1 Dual-Spline Lockring

Pros & Cons

• Dual-spline lockring flexibility works with both cassette and bottom bracket tools

• Fast and easy CENTER LOCK installation with high precision alignment

• Quiet, smooth stopping performance when paired with resin pads

• Highly budget-friendly replacement option for daily riders

• Resin pad only (not rated for metallic/sintered brake pads)

• Heavier construction compared to higher-tier Deore or Ice-Tech series rotors
