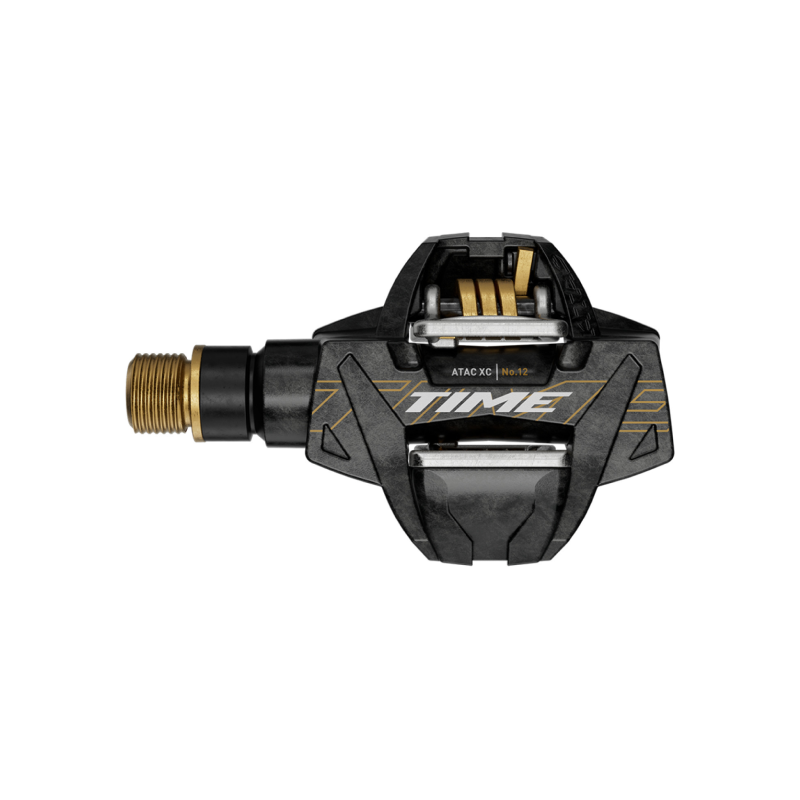

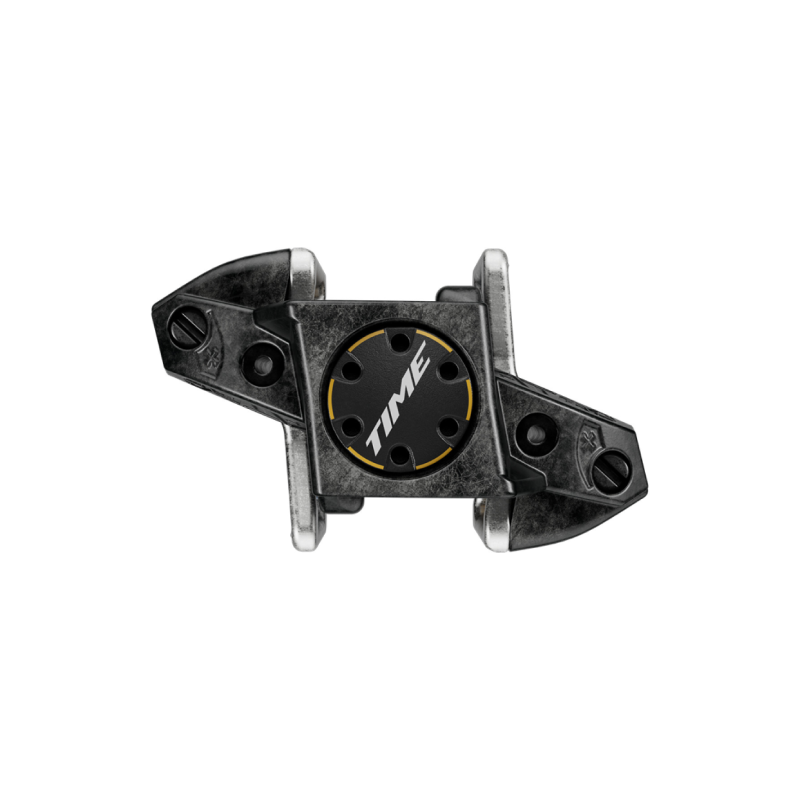

TIME ATAC XC 12 Carbon MTB & Gravel Pedals

TIME ATAC XC 12 Carbon MTB & Gravel Pedals

The absolute pinnacle of TIME’s off-road engineering, the TIME ATAC XC 12 Carbon MTB & Gravel Pedals are the lightest, most advanced pedal in the lineup. Purpose-built for competitive weight-weenies, elite cross-country racers, and fast-paced gravel adventurers, this flagship model is designed to maximise quick windup, power transfer, and unrelenting trail speed.

To achieve its ultra-low weight without sacrificing structural strength, the XC 12 combines a high-modulus, carbon-filled composite body with a premium Titanium axle, finished in a stunning carbon-gold aesthetic. Step into the pedal, and TIME’s legendary ATAC (Auto Tension Adjustment Concept) system instantly goes to work. The dual-spring mechanism features a wide-angle entry that sheds mud, sand, and thick debris with every single click, guaranteeing a positive, predictable engagement in the absolute worst cross-country or cyclocross conditions.

Recognising that endurance racing takes a massive toll on the body, the XC 12 incorporates critical biomechanical freedom. Featuring both lateral and angular float, the pedal allows your feet to organically find their natural alignment. This drastically reduces knee and muscle fatigue over triple-digit gravel races, all while keeping your power connected directly to the drivetrain.

Technical Specifications

• Intended Use: Cross-Country (XC) Racing, Gravel, Cyclocross (CX), Bikepacking

• Body Material: High-grade Carbon-filled composite

• Spindle/Axle: Ultra-lightweight Titanium with smooth steel bearings

• Engagement System: ATAC Dual-Spring Design (Premium ATAC cleats included)

• Stack Height: 18.3 mm

• Tension Adjustment: 3-position adjustable spring tension

• Biomechanical Float: Angular freedom (±5°) / Lateral freedom (±2.5 mm)

• Release Angle: 10° (with ATAC Easy cleats) or 13°/17° (interchangeable orientation depending on cleat setup)

• Distance Pedal Spindle / Crank Arm (Q-Factor Options): 50 mm or 54 mm

• Weight: Elite featherweight status at just ~120g per pedal (~240g for the pair)

Pros & Cons

• Exceptional rotating weight reduction via the titanium spindle and carbon body maximises acceleration efficiency

• Renowned self-cleaning ATAC mechanism provides unmatched, jam-free performance in thick mud and clay

• Generous lateral and angular float safeguards knees and joints against long-distance fatigue

• Adjustable 3-position spring allows you to easily customise your preferred entry and exit resistance

• The premium combination of a carbon body and titanium axle carries a top-tier investment

• Minimalist cross-country profile does not offer a wide platform for unclipped casual shoe riding
